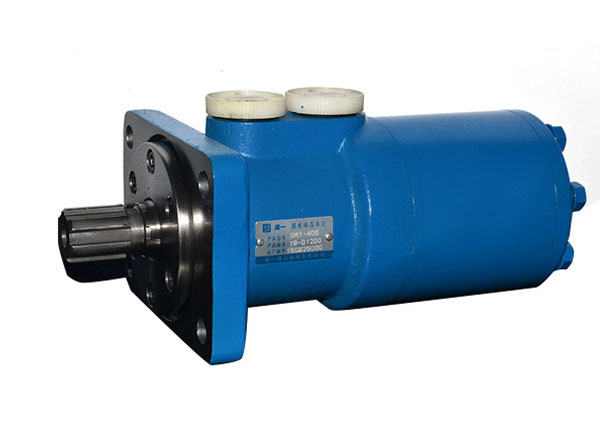

BM1 Series Orbit Hydraulic Motor

Inquire Now

Next Product

PRODUCT DESCRIPTION

Characteristic features:

BM1 Series Motor is a small volume, spool valve, economical type of moto.


Characteristic features:

  • Compact design of spool and gear set, which provide small volume, high power and low weight.

  • Credible design for shaft seal, which can bear high pressure and be used in parallel or in series.

  • Special distribution flow system can meet the requirement of low noise.

  • Direction of shaft rotation and speed can be controlled easily and smoothly.

  • Best combination of efficiency and economy in medium load applications.


Main Specification:

Displacement(ml/r)

50

63

80

100

125

160

200

250

315

400

Flow(LPM)

Cont.

38

45

58

58

58

58

58

58

58

58

Int.

45

53

69

69

69

69

69

69

69

69

Speed(RPM)

Cont.

698

663

685

560

456

356

285

236

179

145

Int.

858

775

820

671

548

426

341

282

210

173

Pressure(MPa)

Cont.

12.5

12.5

12.5

12.5

12.5

12.5

11

10

9

9

Int.

14

14

14

14

14

12.5

12.5

12.5

12.5

11

Torque(N*m)

Cont.

74

87

124

155

194

227

282

302

365

456

Int.

86

98

141

176

221

260

318

383

406

521


Note:

1. Intermittent means the entrance of maximum pressure; continuous working pressure means the differential pressure;

2. Motor should not work under the highest pressure and the maximum speed.

3. The running time should not exceed 10% under intermittent working conditions

4. The Maximum working temperature is 80℃

5. The maximum allowable back pressure is 10Mpa, but the recommended back pressure should not exceed 5MP, a leaking pipes is needed when exceeding.

6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.

7. Recommending N68 anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO 18/13.
