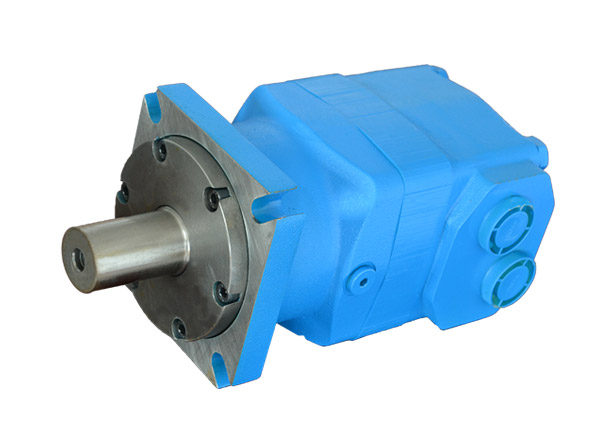

BM8 Series Orbit Hydraulic Motor

Inquire Now

Next Product

PRODUCT DESCRIPTION

Characteristic features:

BM8 motor is a disc calve type geroior motor.

  • Advanced desian in disc distribution flow. Which can provide improved performance at low speed.

  • Advanced design of shaft seal, which can bear higher pressure.

  • Advanced distribution mechanism design, which has the automatic compensation function.

  • Double-rolling bearing design, which permit higher radial loads.

  • A variety of connection types of flange. Output shaft and oil port.


Main Specification

Displacement(ml/r)

310

390

500

630

800

1000

1250

1600

Flow(LPM)

Cont.

150

150

150

150

150

300

312

320

Int.

225

225

225

225

225

340

400

400

Speed(RPM)

Cont.

484

385

307

241

320

300

250

200

Int.

699

572

454

355

400

350

320

250

Pressure(MPa)

Cont.

20.5

20.5

17

16

16

16

16

16

Int.

31

31

24

25

25

25

25

25

Torque(Nm)

Cont.

928

1156

1215

1411

1800

2200

2800

3600

Int.

1356

1633

1685

2217

2800

3200

4400

5500


Note:

1. Intermittent means the entrance of the maximum pressure; continuous working pressure means the differential pressure.

2. Motor should not work under the highest pressure and the maximum speed.

3. The running time should not exceed 10% under intermittent working conditions.

4. Recommending N68 anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO18/13.

5. The maximum working temperature is 80℃.

6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.

7. The maximum allowable back pressure is 10MPa, but the recommended back pressure should not exceed 5MPa, a leaking pipes is needed when exceeding.
